Optigo Networks Capture Tool (Windows) - 3.2.0rc2 (Current Version)

The Optigo BACnet Capture Tool is an application that captures BACnet traffic (IP, Ethernet, and MS/TP) into a file and then automatically uploads it to Optigo Visual Networks for analysis.


Please refer to the Optigo Networks' Capture Tool (Software): Guide for OptigoVN for details on how to use it.


Download

• OVN-OptigoCaptureTool-3.2.0rc2-installer.exe
  SHA256SUM: f6f2490e2a4b9579f49de3dbc4d7f9f9b24d62f40ff5235af033a8233073c375

  See Release Notes.

Requirements

• An Optigo Visual Networks account.

• An API key generated from Optigo Visual Networks. Please see Finding Your API Key for instructions.

• A supported operating system: Windows 10, Windows Server 2022, and Windows 11 (all 64-bit ONLY).

  NOTE:
  For Windows 11, or if 'win10pcap' is not allowed by your organization, refer to this article.

• Ideal host hardware:
  - 1.4 GHz or faster processor
  - 2 GB of RAM or more
  - 2 GB of hard disk space or more
  - A network connection capable of reaching Optigo Visual Networks (OptigoVN)

• The latest version of Google's Chrome web browser
  NOTE: This is required in order to manage the tool locally or from another computer on the same network.

• A capture interface, either built-in (i.e. Ethernet port) or USB adapter (i.e. USB-to-Ethernet or USB-to-MS/TP), that is supported by Windows.

• Port 443 must be open for the Capture Tool to reach the Optigo Networks servers.


Installation Instructions

• IMPORTANT:
  This software uses port 4000. Before installing it, make sure that no other software on your system is using this port. Also, if is not already open, but you plan to access the capture tool from another computer on the same LAN, you will need to open port 4000.


  Using the download link above, download and run the Windows installer for the latest version of the Optigo Capture Tool.

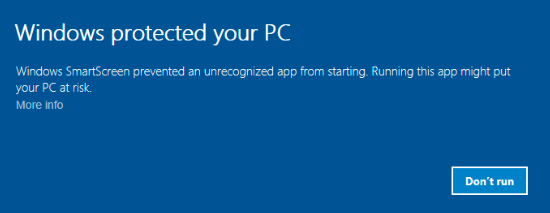

  If you're on Windows 10 and get this warning message (below), simply click "More Info" and "Run Anyway" to allow the installation to proceed normally.

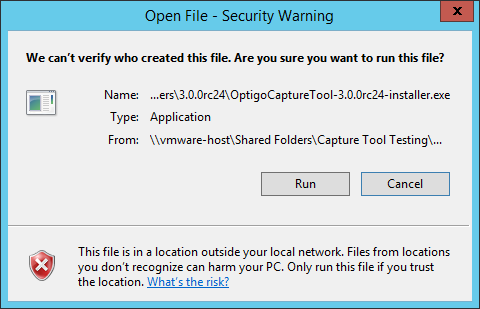

  If you're on Windows Server and get this warning message (below), simply click "Run" to allow the installation to proceed normally.




  Make sure that there is at least 2GB of space left on the drive you've chosen to install the Capture Tool, then click "OK".

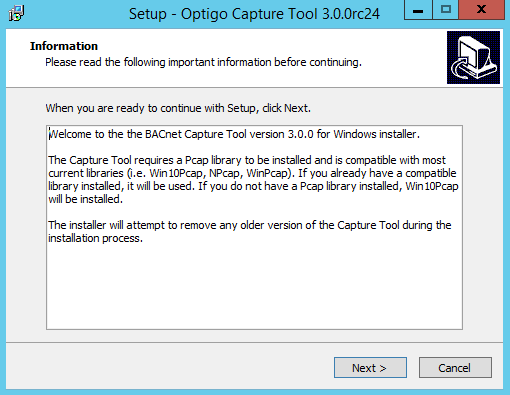

  If your computer does not already have a compatible Pcap library installed (i.e. win10pcap or npcap), the 'win10pcap' library will be installed on your system.

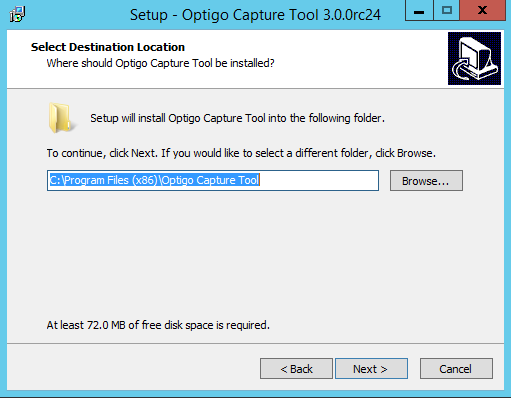

  If you want to install the tool in a different directory than the default location, click "Browse..." to select it before hitting "Next" to proceed.

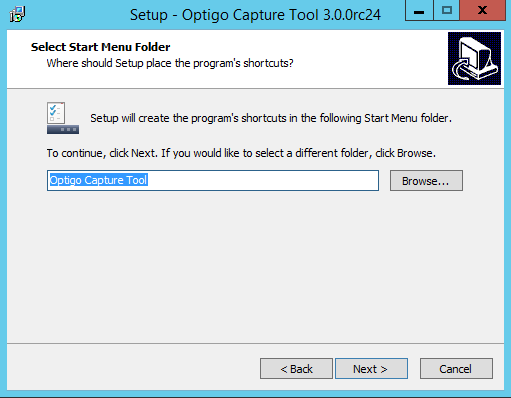

  You can also choose a different location for the program's shortcuts.

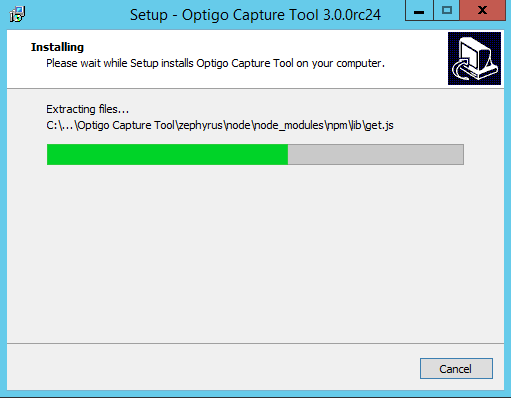

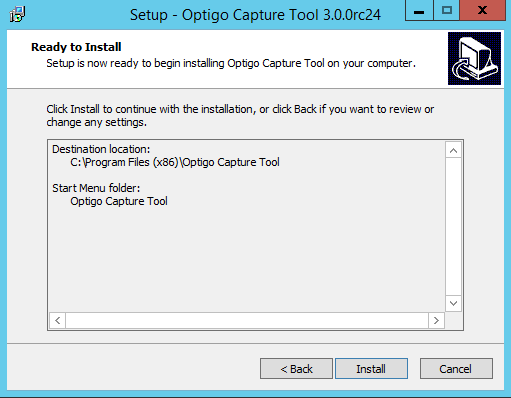

  Finally, install the Capture Tool itself.

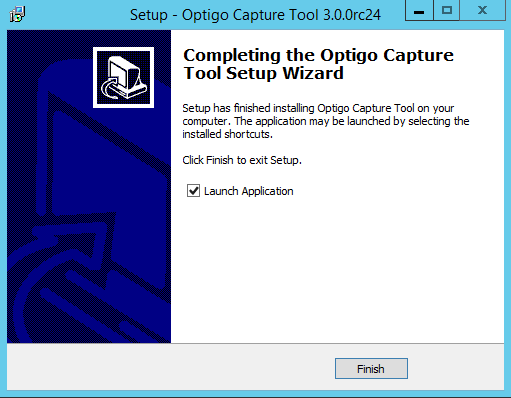

  Click "Finish" to close the installer and then proceed to the Optigo Networks' Capture Tool (Software): Guide for OptigoVN to start using the capture tool.
